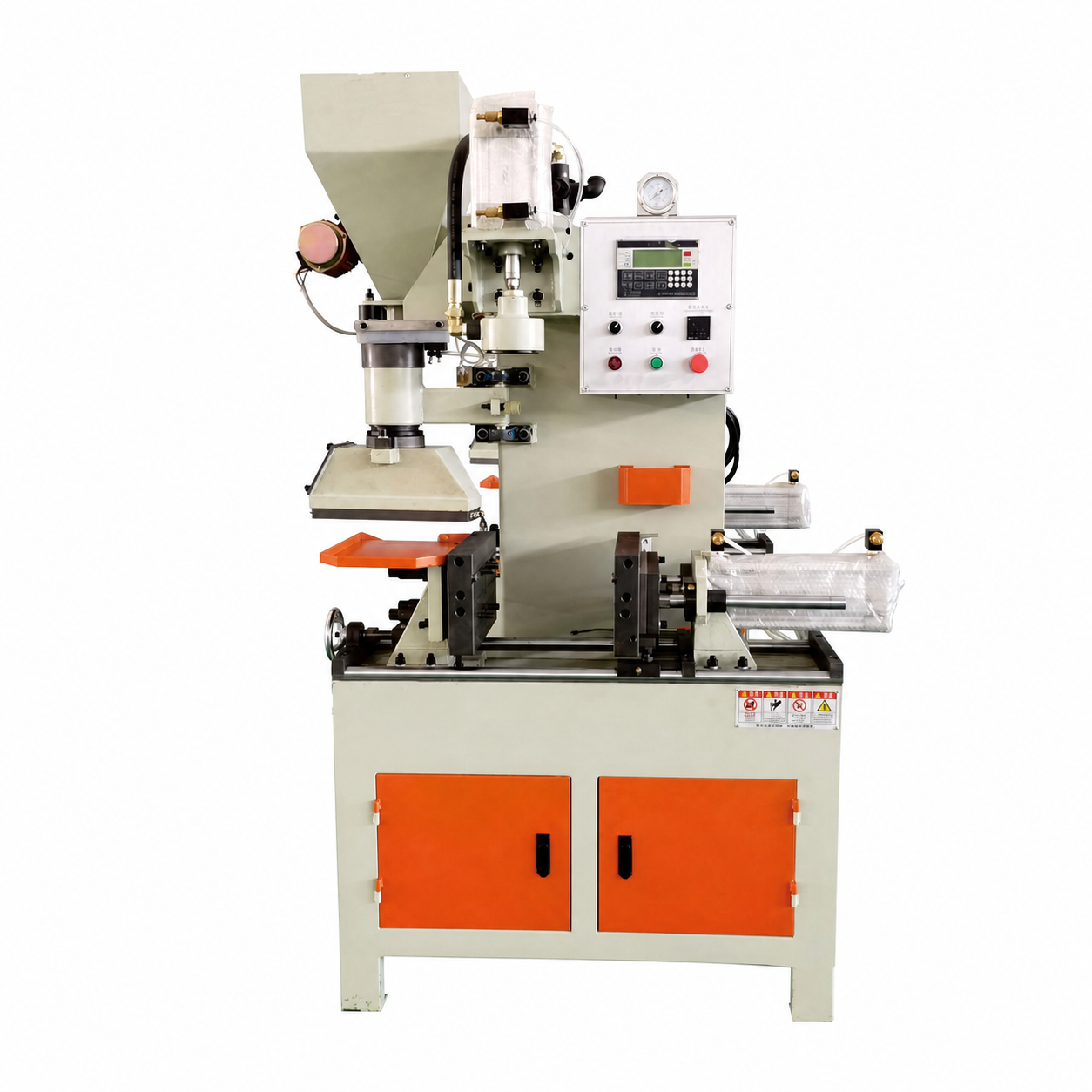

Vertical semi-automatic dry/wet-sand hot-core-box machine for cores under 3.2 kg, widely used for valves, bathroom and plumbing parts.
Category: Core Shooter Machine
Request ConfigurationVertical semi-automatic dry/wet-sand hot-core-box machine for cores under 3.2 kg, widely used for valves, bathroom and plumbing parts. Max core box 450 x 260 x 160 mm; heating plate 350 x 200 mm; 150 mm core-pulling stroke; 450 kg; 6 kW; 1250 x 950 x 1900 mm. Full source specifications and product imagery are reproduced from the Yueli English catalog dated 0326.
Technical data transcribed from the current Yueli product catalog. Final configuration is confirmed against the workpiece, process and production requirements.
| Sand core mass | 3.2 kg |
|---|---|
| Maximum core box size | 450×260×160 mm |
| Heating plate size | 350×200 mm |
| Core pulling stroke | 150 mm |
| Net weight | 450 kg |
| Power | 6 kW |
| Dimension | 1250×950×1900 mm |
Please share the workpiece drawing, material, key dimensions, required process and target output for configuration review.
Vertical semi-automatic dry/wet-sand hot-core-box machine for cores under 3.2 kg, widely used for valves, bathroom and plumbing parts.
Share your workpiece drawing, material and required operation for an application review. Suitability and configuration are confirmed for the specific part.
