Description

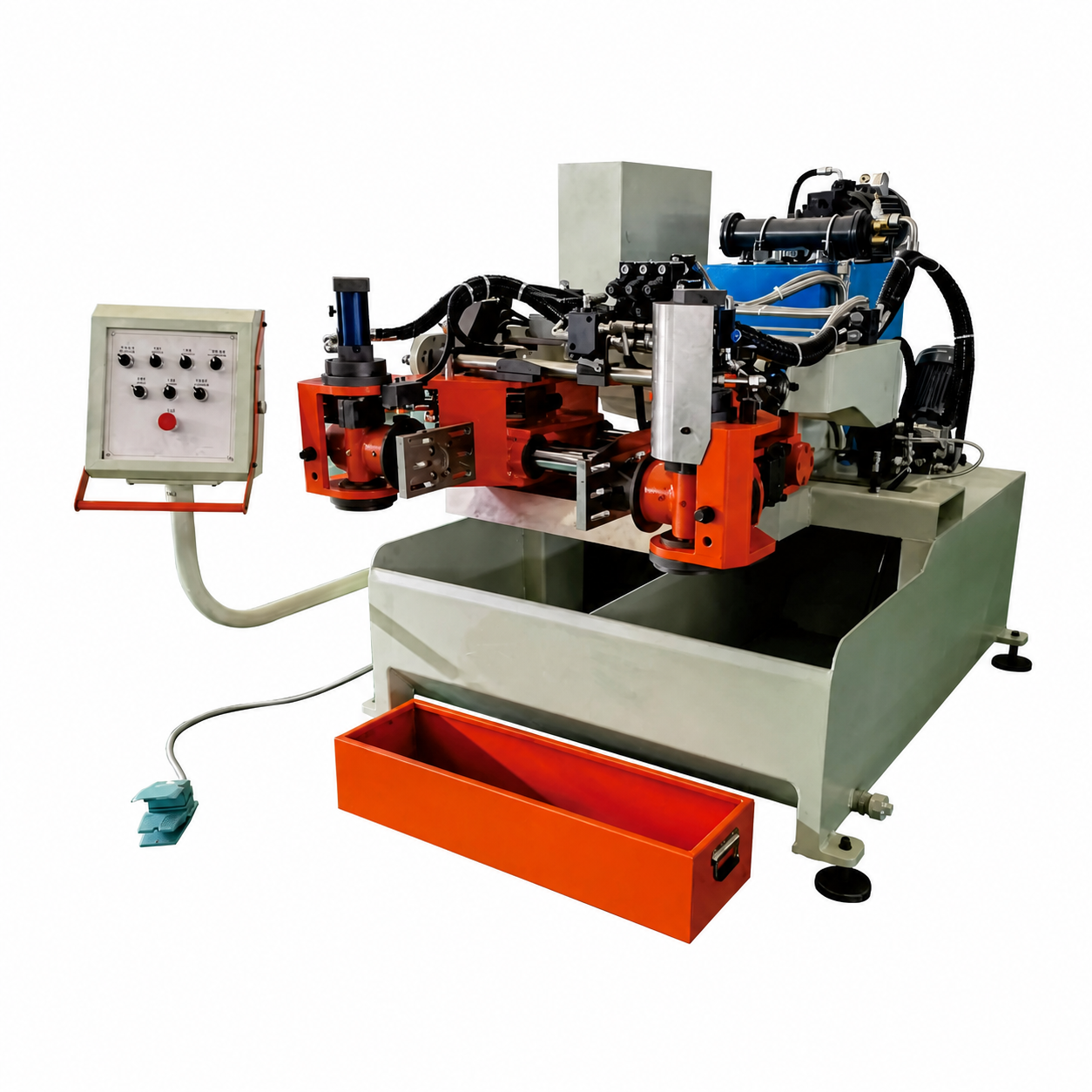

Brass gravity casting machine with 6 mm 304 stainless water tank, Taiwan hydraulic system and Schneider/Omron/Siemens controls. Max mould 550 mm; 550 mm working distance; 150 kg mould; 280 mm merge distance; 40-60 kPa oil pressure; 5.5 kW; 2200 kg; 2350 x 2200 x 1860 mm. Full source specifications and product imagery are reproduced from the Yueli English catalog dated 0326.
CATALOG TECHNICAL DATA
Technical Specifications
Technical data transcribed from the current Yueli product catalog. Final configuration is confirmed against the workpiece, process and production requirements.
550-B
| Maximum model size | Φ550 mm |
|---|---|
| Max model working distance | 550 mm |
| Max model weight | 150 kg |
| Max merge distance | ≤280 mm |
| Oil pressure | 40-60 KPa |
| Side pouring angle | 0-90 degree |
| Positive pouring angle | 0-90 degree |
| Hydraulic oil | 165L 68# anti-stress |
| Total machine power | 5.5 kW |
| Net weight | 2200 kg |
| Dimension | 2350×2200×1860 mm |
Please share the workpiece drawing, material, key dimensions, required process and target output for configuration review.
