Description

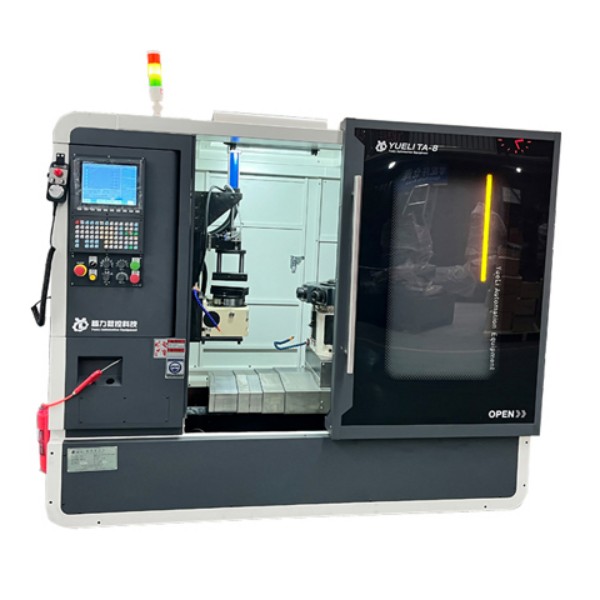

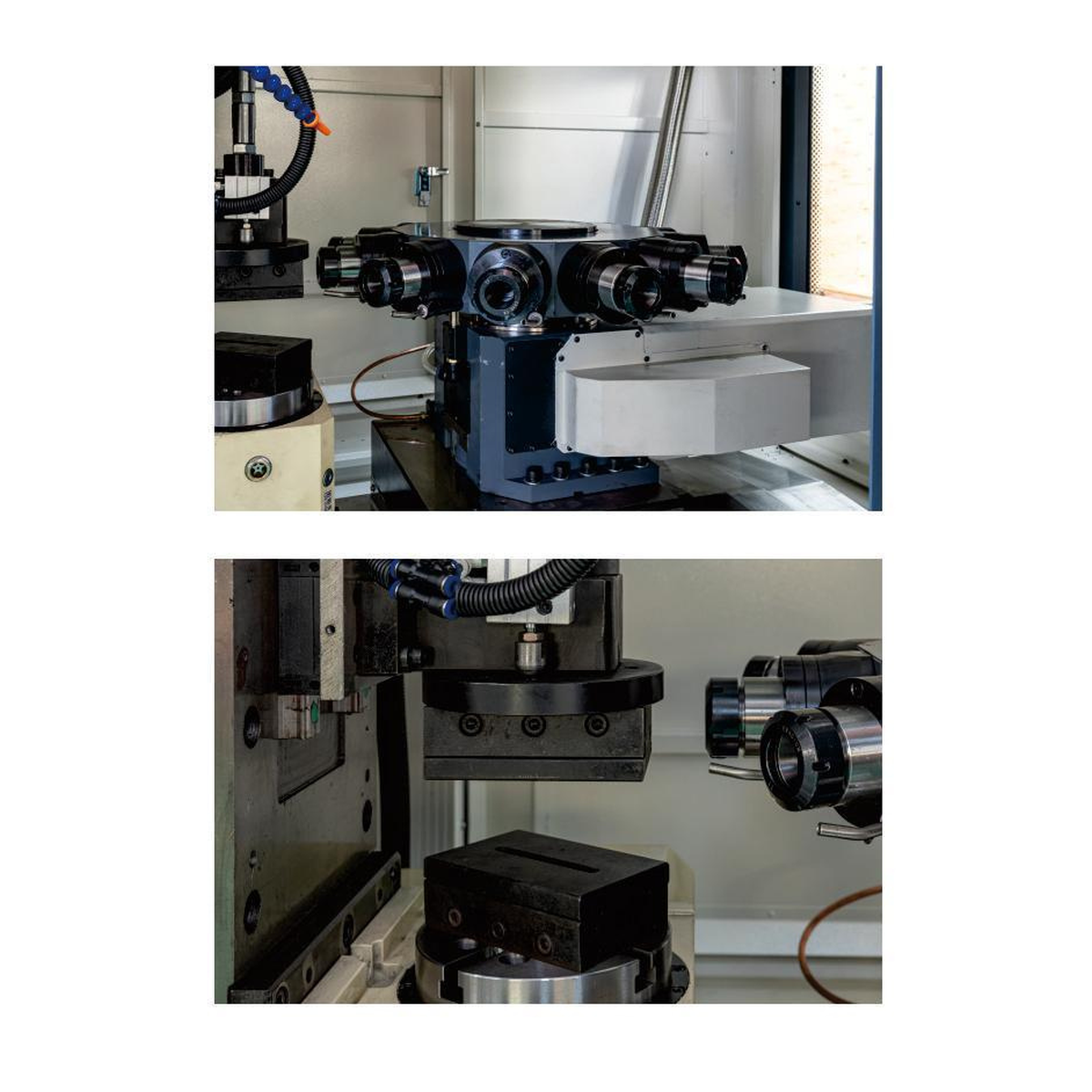

Horizontal machining center with optional Taiwan Hust CNC, turret synchronous tool change and high-speed X/Y/Z positioning. 8/12 spindles; 400/280/470 mm X/Y/Z travel; 5.5 (7.5) kW servo spindle; 0-6000 rpm; 60 mm max hole diameter; 300 x 300 mm work surface; cam fourth axis; 2300 x 1600 x 1900 mm; 3000 kg. Full source specifications and product imagery are reproduced from the Yueli English catalog dated 0326.
CATALOG TECHNICAL DATA
Technical Specifications
Technical data transcribed from the current Yueli product catalog. Final configuration is confirmed against the workpiece, process and production requirements.
TA-8 / model family not stated in table
| Spindle qty | 8/12 |
|---|---|
| X-axis maximum travel (screw) | 400 mm |
| Y-axis maximum travel | 280 mm |
| Z-axis maximum travel | 470 mm |
| Servo spindle motor power | 5.5 (7.5) kW |
| Spindle revolutions | 0-6000 rpm |
| Max processing hole diameter | Φ60 mm |
| Spindle turret tool changing time | 0.4 s / 180° |
| Tool change servo motor | 750 W |
| Work surface size | 300×300 mm |
| The 4th axis | Cam |
| Dimension L×W×H | 2300×1600×1900 mm |
| Net weight | 3000 kg |
Please share the workpiece drawing, material, key dimensions, required process and target output for configuration review.
