Description

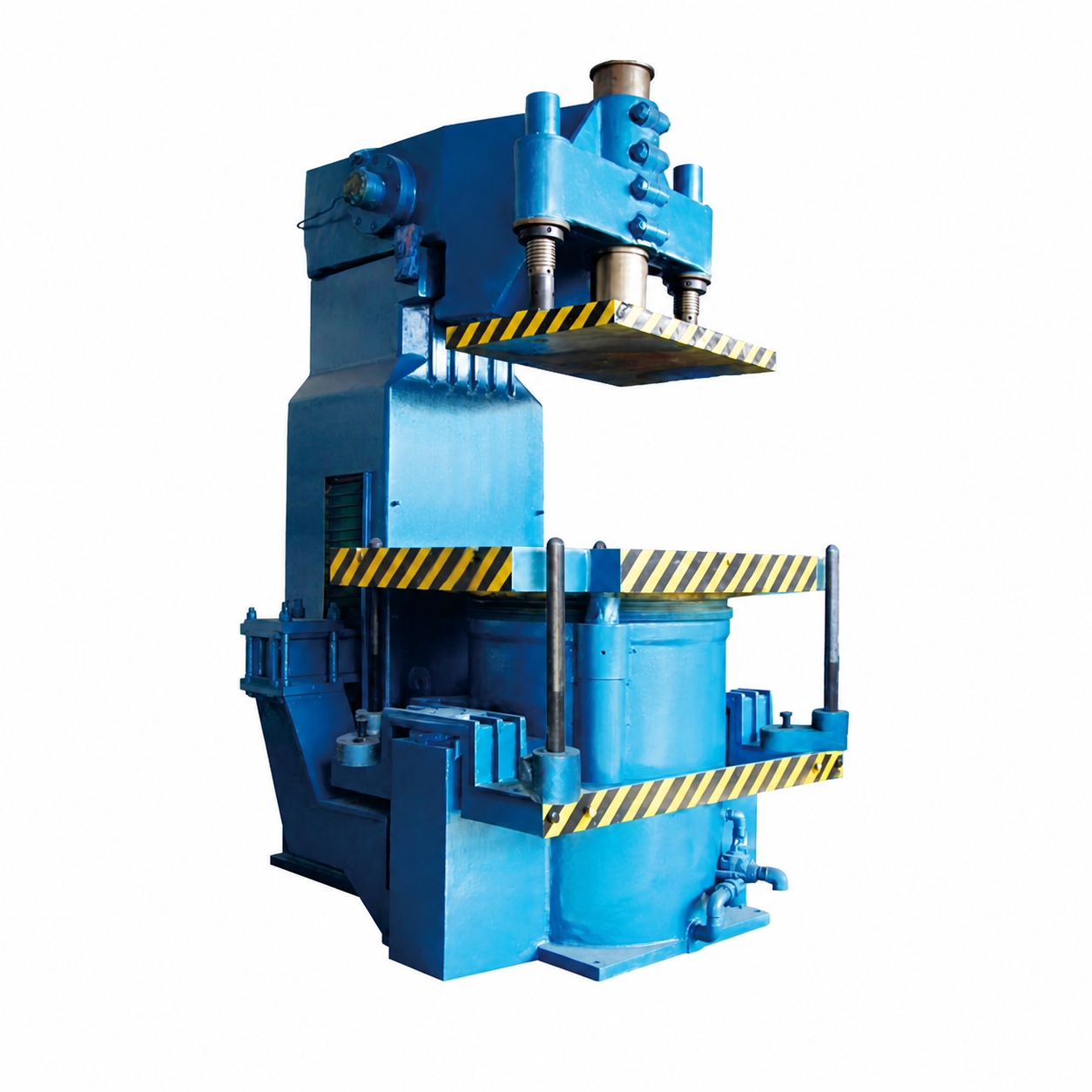

Micro-vibration dry-sand molding machine with hydraulic lifting and shock table. Standard sand box 900 x 730 x 350 mm; max 1200 x 1200 x 200 mm; 350 mm lifting stroke; platen-to-table distance 798 mm; 6000 kg; 1740 x 1160 x 2420 mm. Full source specifications and product imagery are reproduced from the Yueli English catalog dated 0326.
CATALOG TECHNICAL DATA
Technical Specifications
Technical data transcribed from the current Yueli product catalog. Final configuration is confirmed against the workpiece, process and production requirements.
Not specified in the catalog
| Inner size of standard sand box | 900×730×350 mm |
|---|---|
| Max inner size of sand box | 1200×1200×200 mm |
| Lifting stroke | 350 mm |
| Distance between platen and shock table | 798 |
| Net weight | 6000 kg |
| Dimension | 1740×1160×2420 mm |
Please share the workpiece drawing, material, key dimensions, required process and target output for configuration review.
