Description

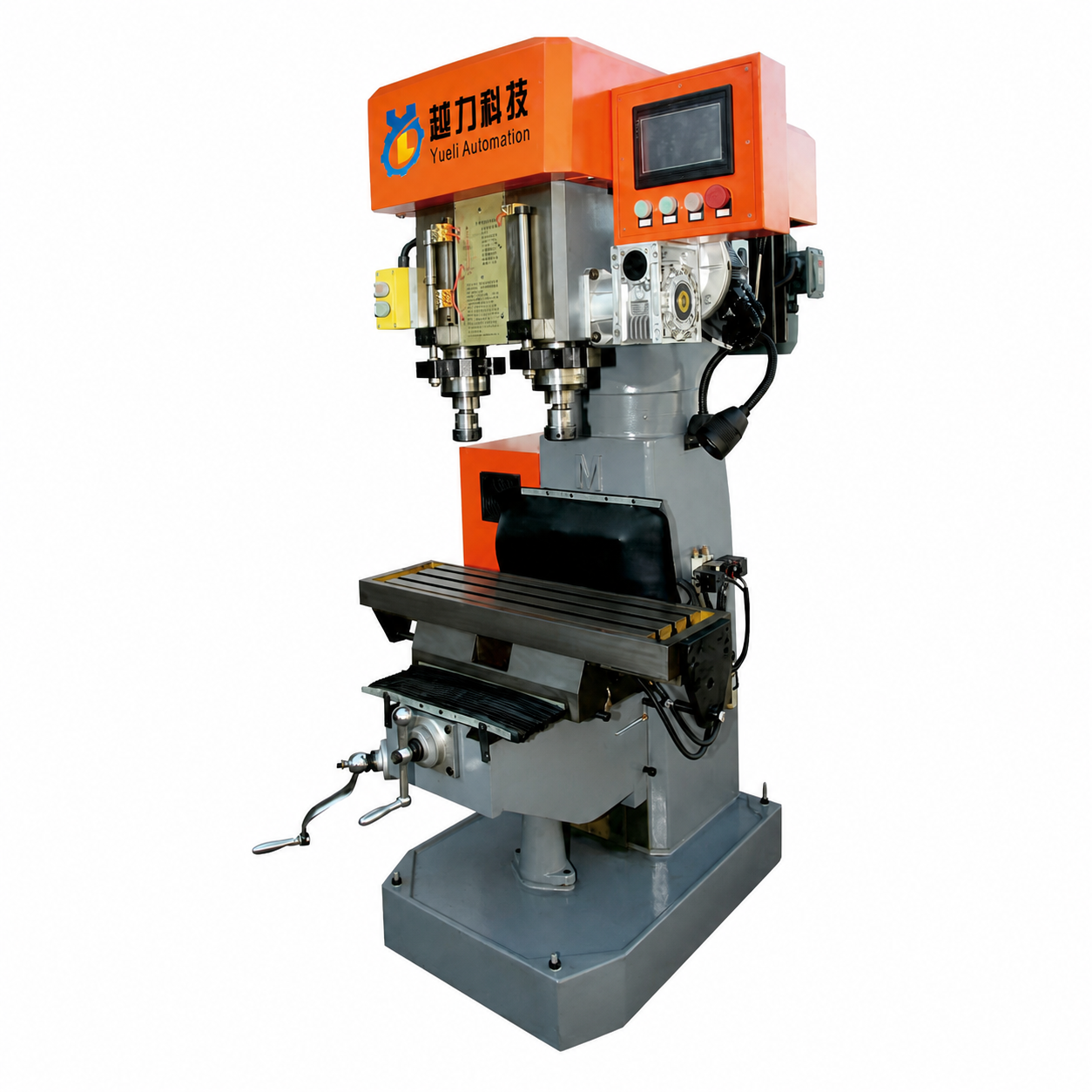

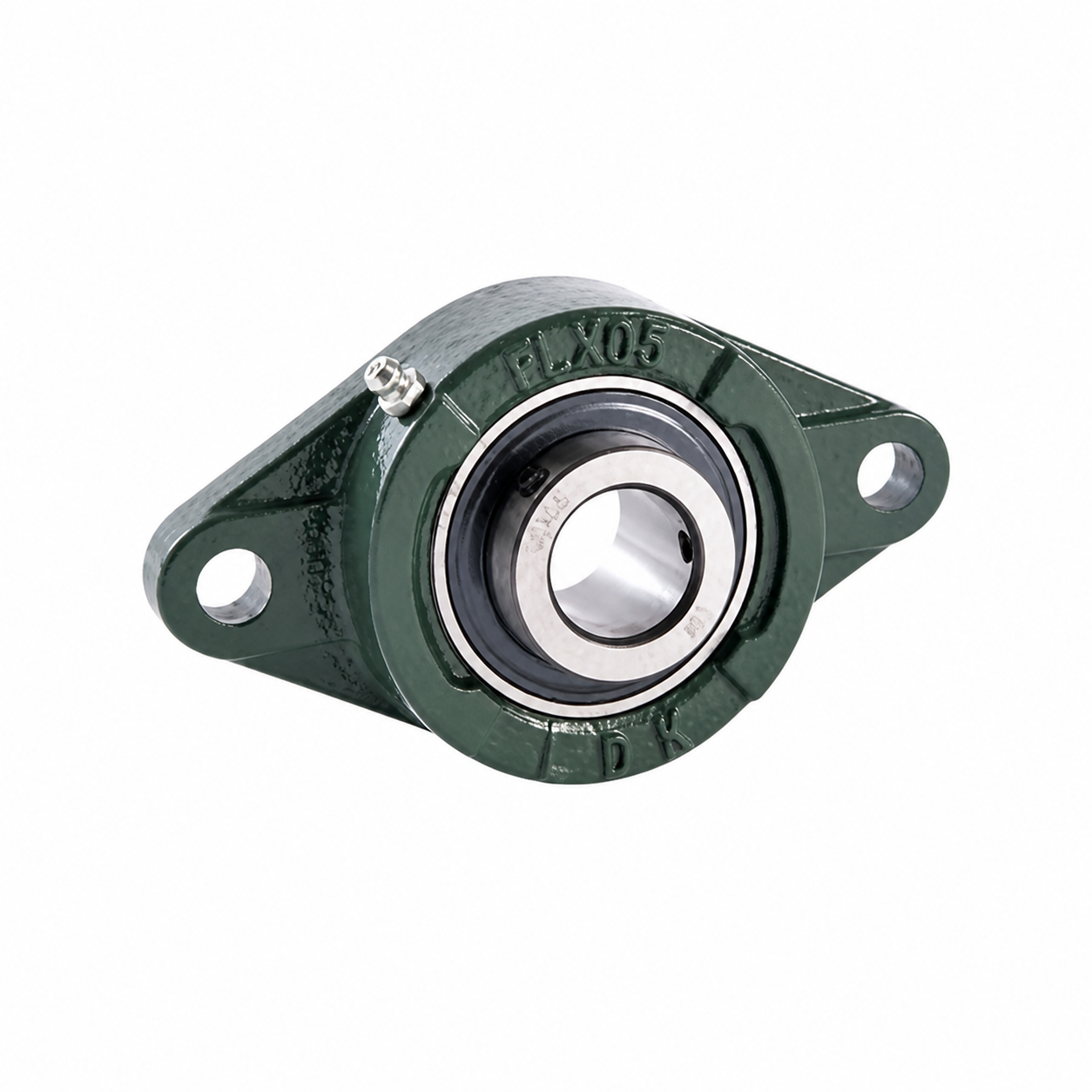

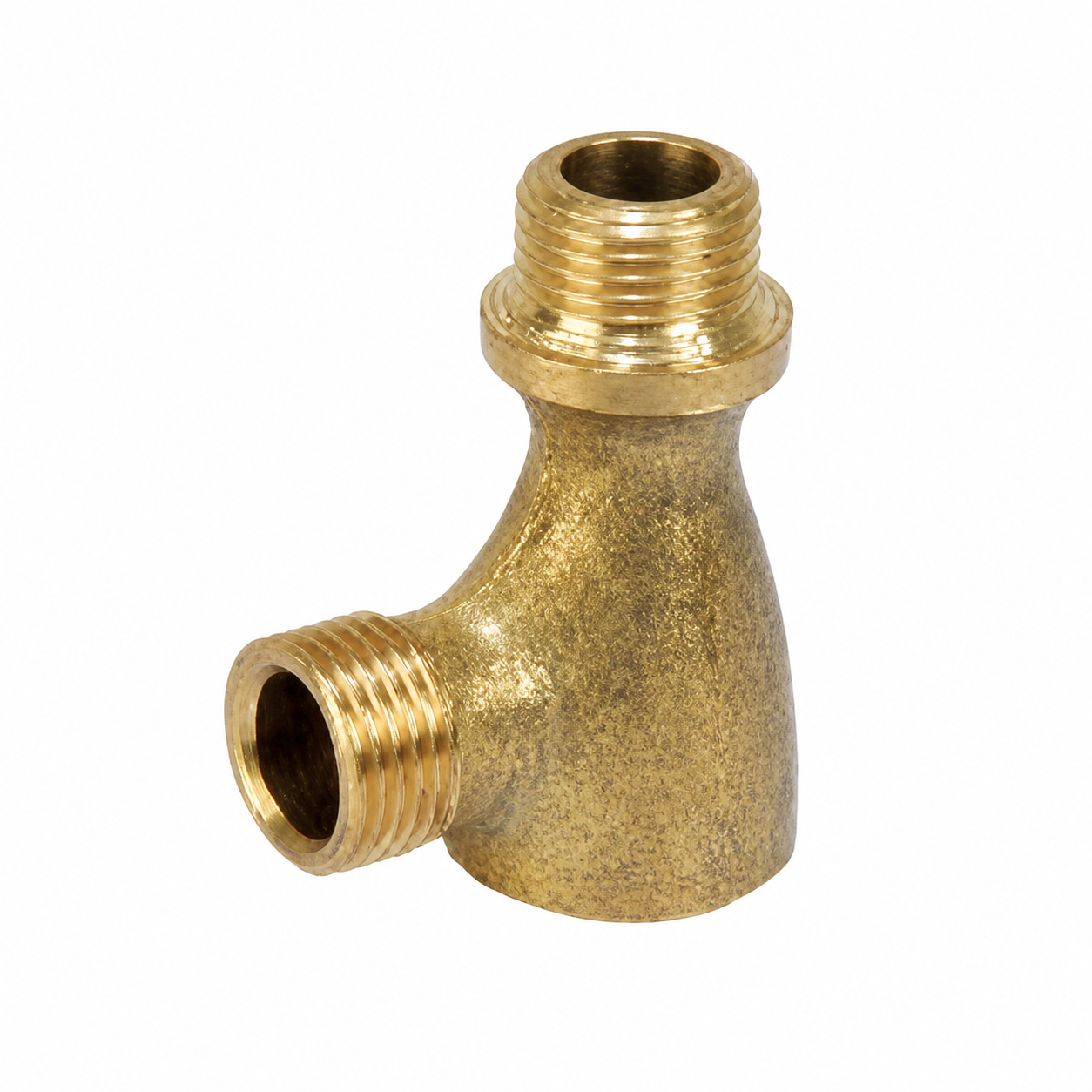

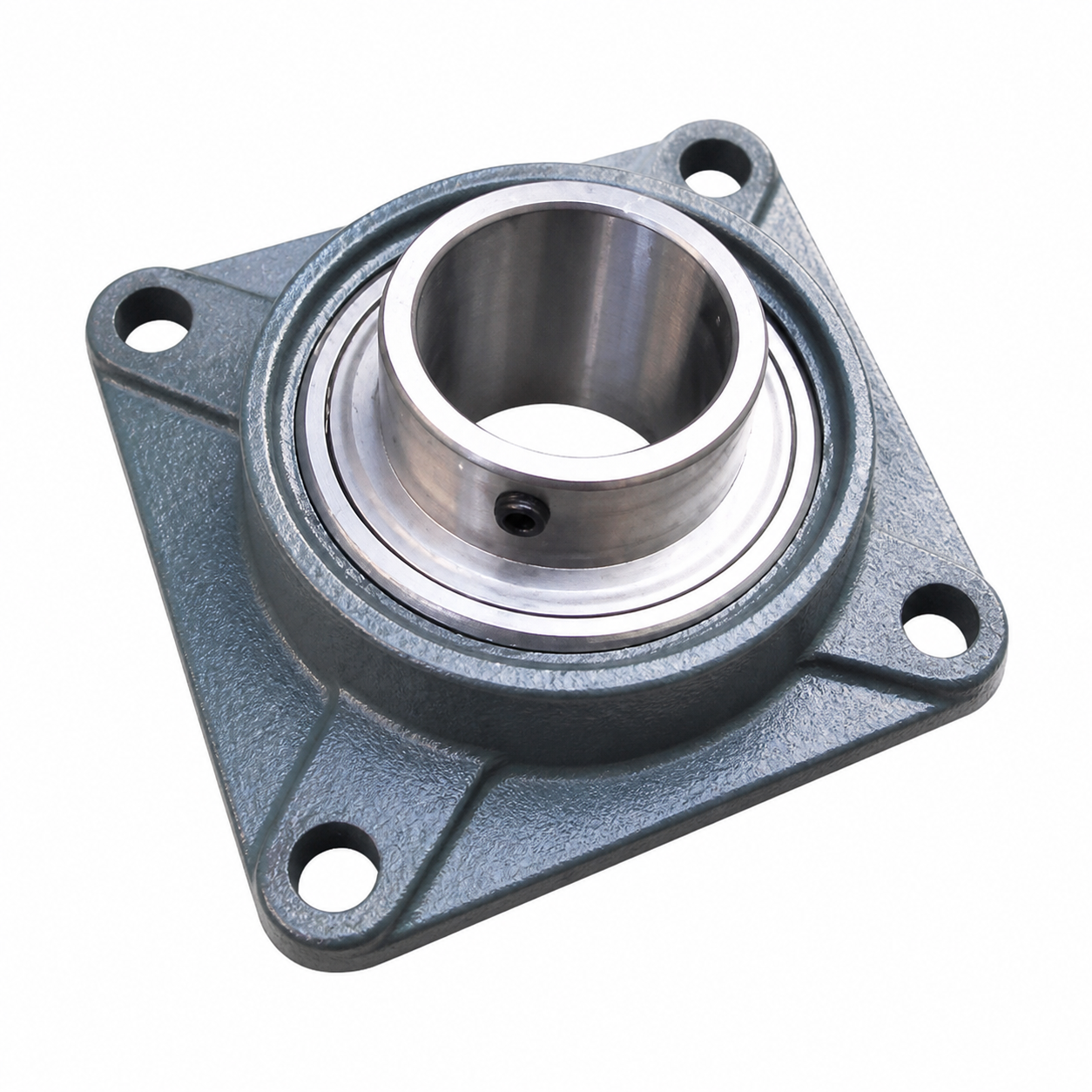

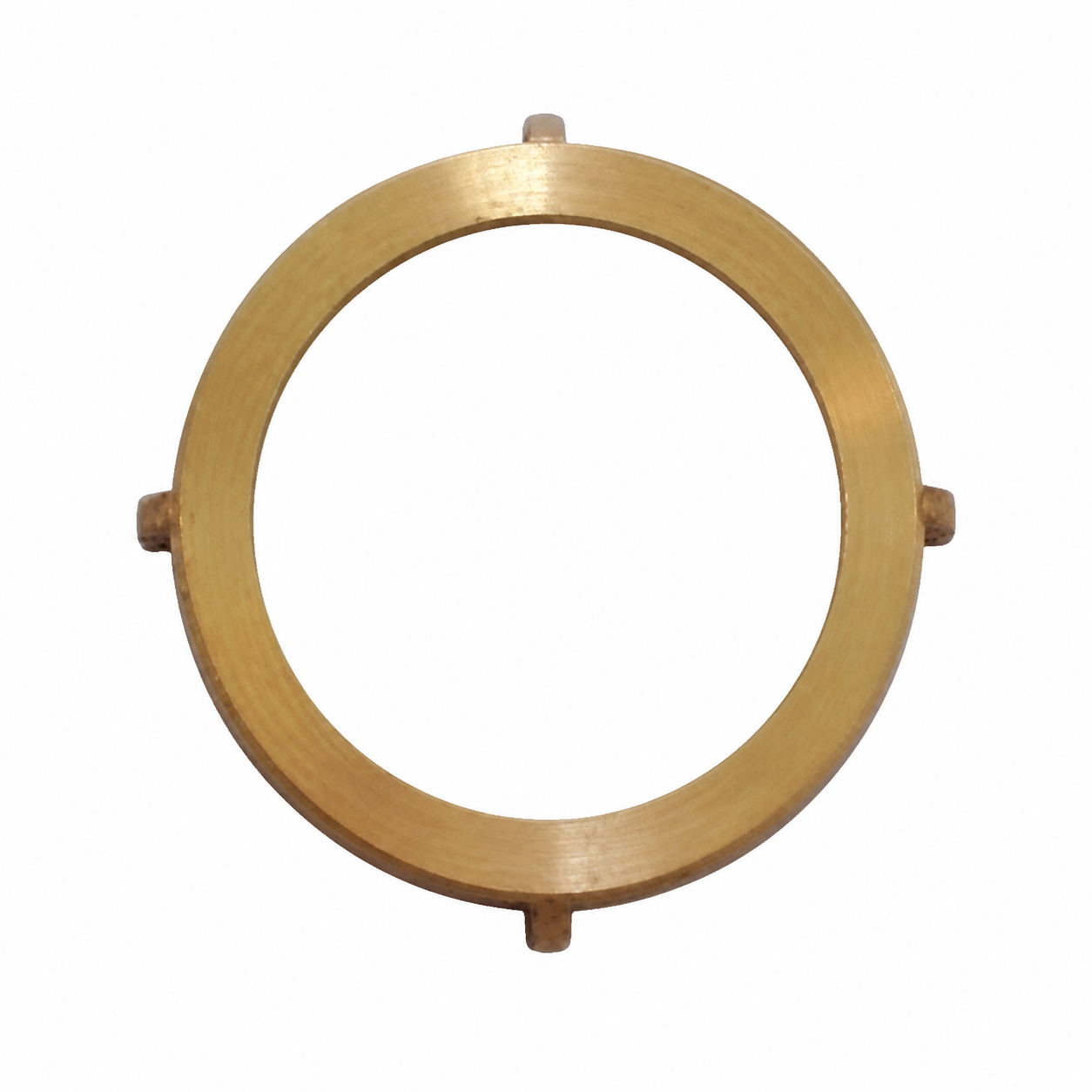

PLC control is optional; brace or pneumatic tapping is available. Models ZSK4132x2A and ZSK4150x2 provide 160/240 mm X travel, 120 mm Y travel, 100/140 mm drilling stroke, 90/100 mm tapping stroke, NT30/MT4 taper, max diameter 32/50 mm and 750/1200 kg net weight. Full source specifications and product imagery are reproduced from the Yueli English catalog dated 0326.
CATALOG TECHNICAL DATA
Technical Specifications
Technical data transcribed from the current Yueli product catalog. Final configuration is confirmed against the workpiece, process and production requirements.
ZSK4132×2A
| X-axis max travel (pneumatic) | 160 mm |
|---|---|
| Y-axis max travel (manual) | 120 mm |
| Max stroke of drilling spindle | 100 mm |
| Max stroke of tapping spindle | 90 mm |
| Spindle distance | 150 mm |
| Spindle sleeve diameter | Φ86 |
| Distance from spindle end face to worktable | 160/480 mm |
| Spindle taper | NT30 |
| Max drilling diameter | Φ32 |
| Max tapping diameter | Φ32 |
| Z2, Z1 axis speed | 0-1400 r/min |
| Spindle motor power | 3KW/4P |
| Dimension L×W×H | 1200×610×1500 mm |
| Net weight | 750 KG |
ZSK4150×2
| X-axis max travel (pneumatic) | 240 mm |
|---|---|
| Y-axis max travel (manual) | 120 mm |
| Max stroke of drilling spindle | 140 mm |
| Max stroke of tapping spindle | 100 mm |
| Spindle distance | 240 mm |
| Spindle sleeve diameter | Φ90 |
| Distance from spindle end face to worktable | 240/580 mm |
| Spindle taper | MT4 |
| Max drilling diameter | Φ50 |
| Max tapping diameter | Φ50 |
| Z2, Z1 axis speed | 0-1400 r/min |
| Spindle motor power | 4KW/4P |
| Dimension L×W×H | 1400×940×1700 mm |
| Net weight | 1200 KG |
Please share the workpiece drawing, material, key dimensions, required process and target output for configuration review.
