Description

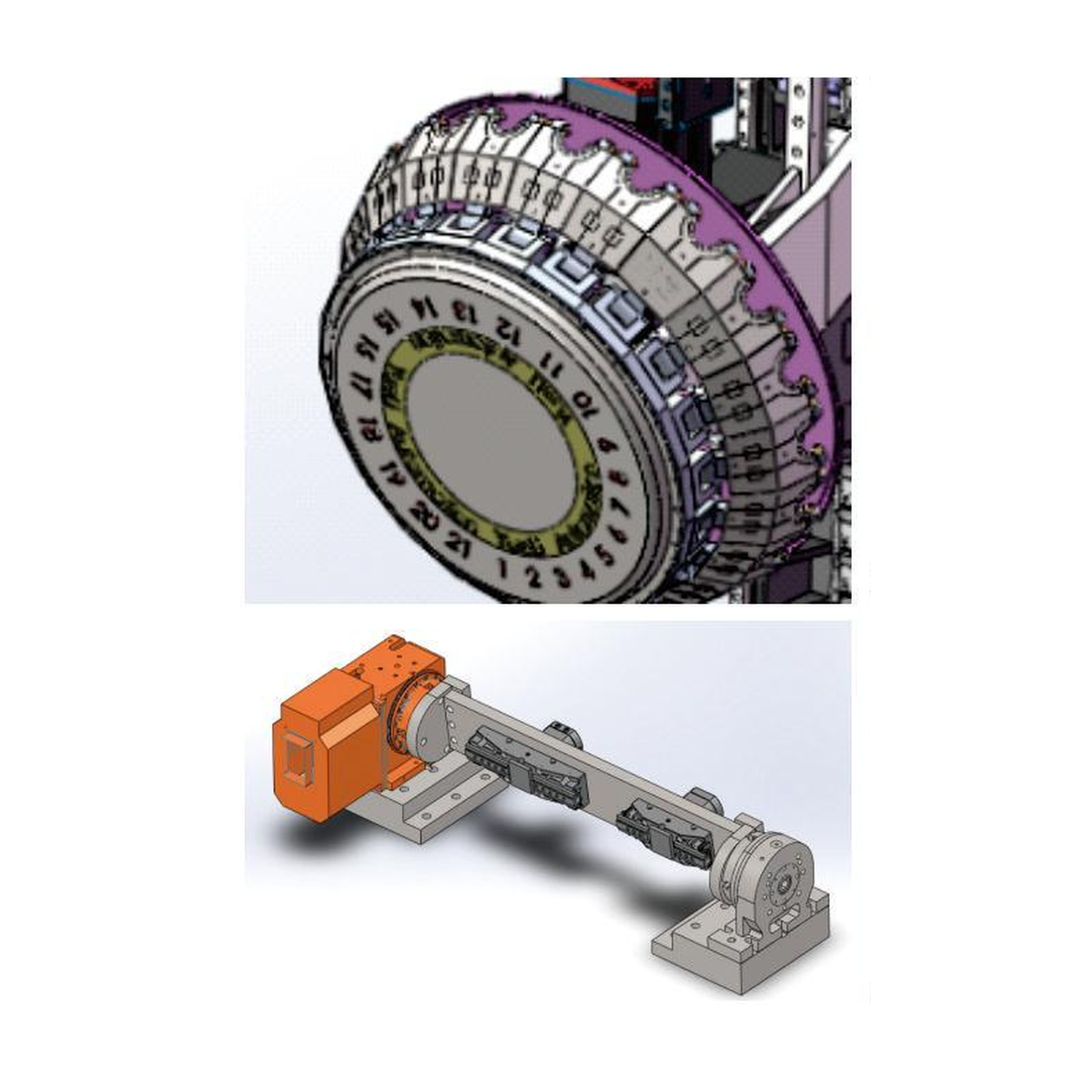

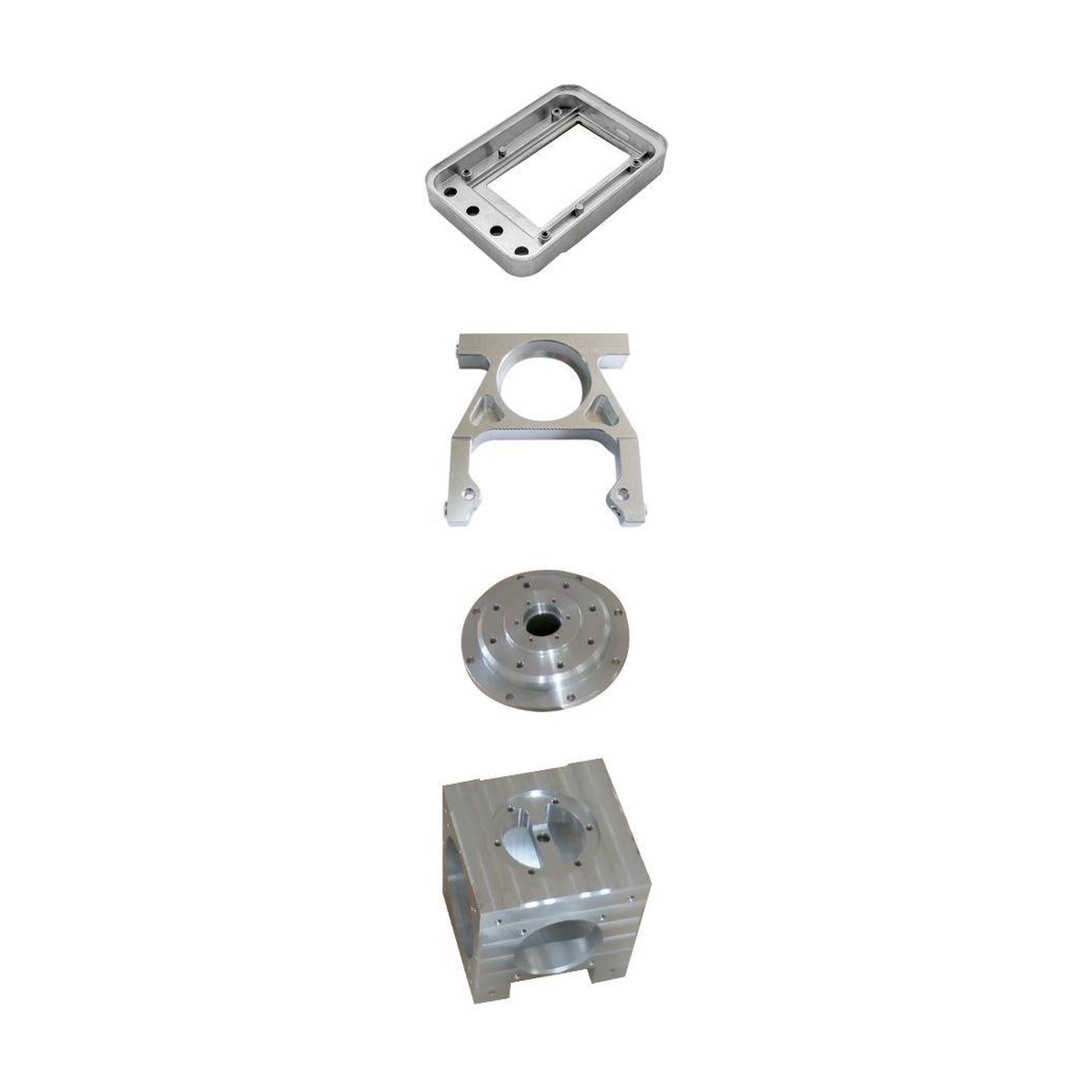

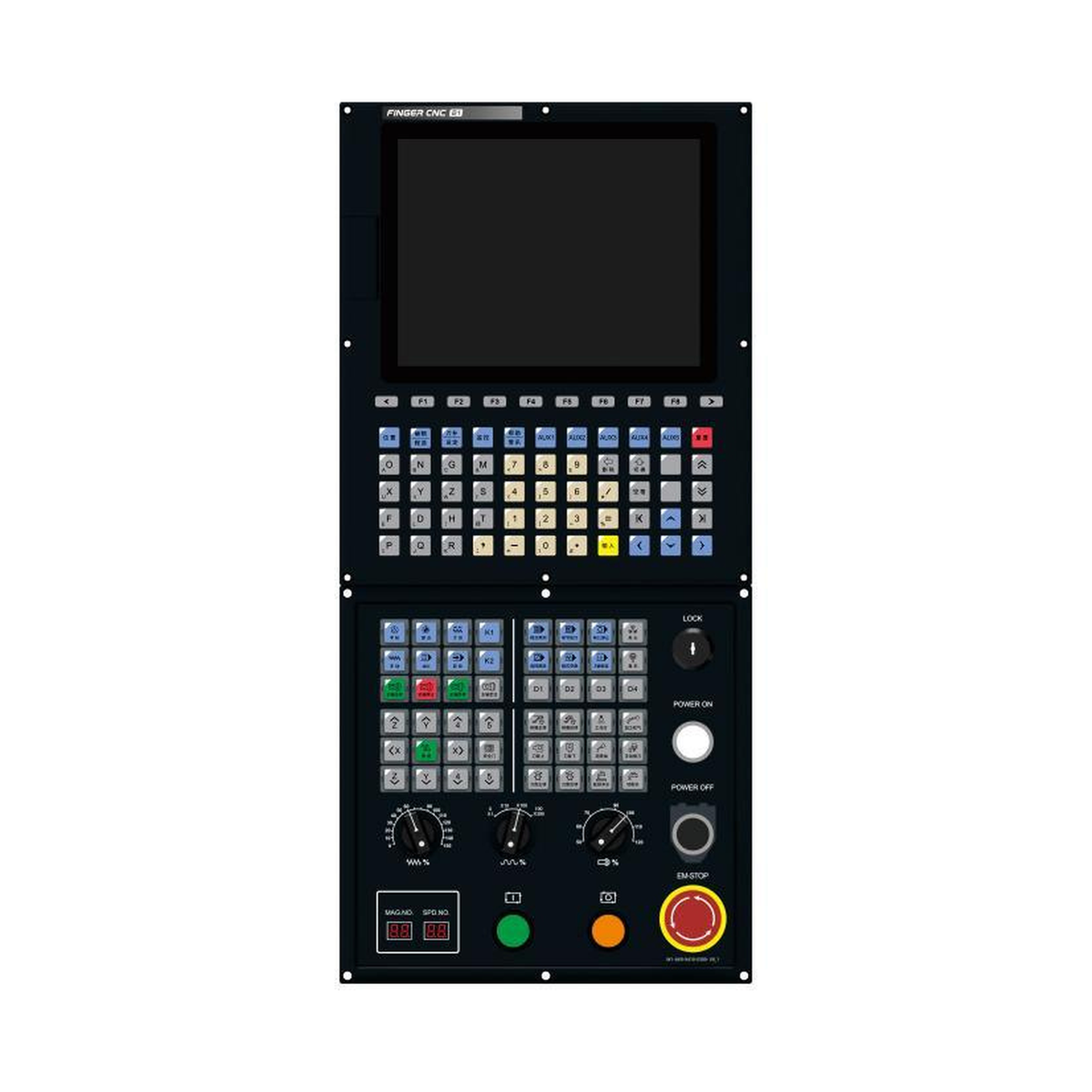

High-speed vertical center with optional Taiwan Hust CNC and hat-type tool changer. Designed for drilling, tapping and milling valves, faucet components and precision metal parts. Maximum spindle speed: 20,000 rpm. Tool magazine capacity: 21 tools. Workbench size: 700 × 420 mm. Tool change time: 1.6 sec.
CATALOG TECHNICAL DATA
Technical Specifications
Technical data transcribed from the current Yueli product catalog. Final configuration is confirmed against the workpiece, process and production requirements.
YL-850
| X-axis travel | 800 mm |
|---|---|
| Y-axis travel | 500 mm |
| Z-axis travel | 420 mm |
| Distance from spindle end face to worktable | 145-495 mm |
| Distance from spindle center to column | 420 mm |
| Spindle form | Direct-drive |
| Number of revolutions | 20000 rpm |
| Tool magazine capacity | 21T |
| Max processing diameter | 50 mm |
| Tool changing time | 1.6 sec |
| Workbench size | 700×420 mm |
| Dimension L×W×H | 2600×2350×2550 mm |
| Net weight | 4200 kg |
Please share the workpiece drawing, material, key dimensions, required process and target output for configuration review.
