Description

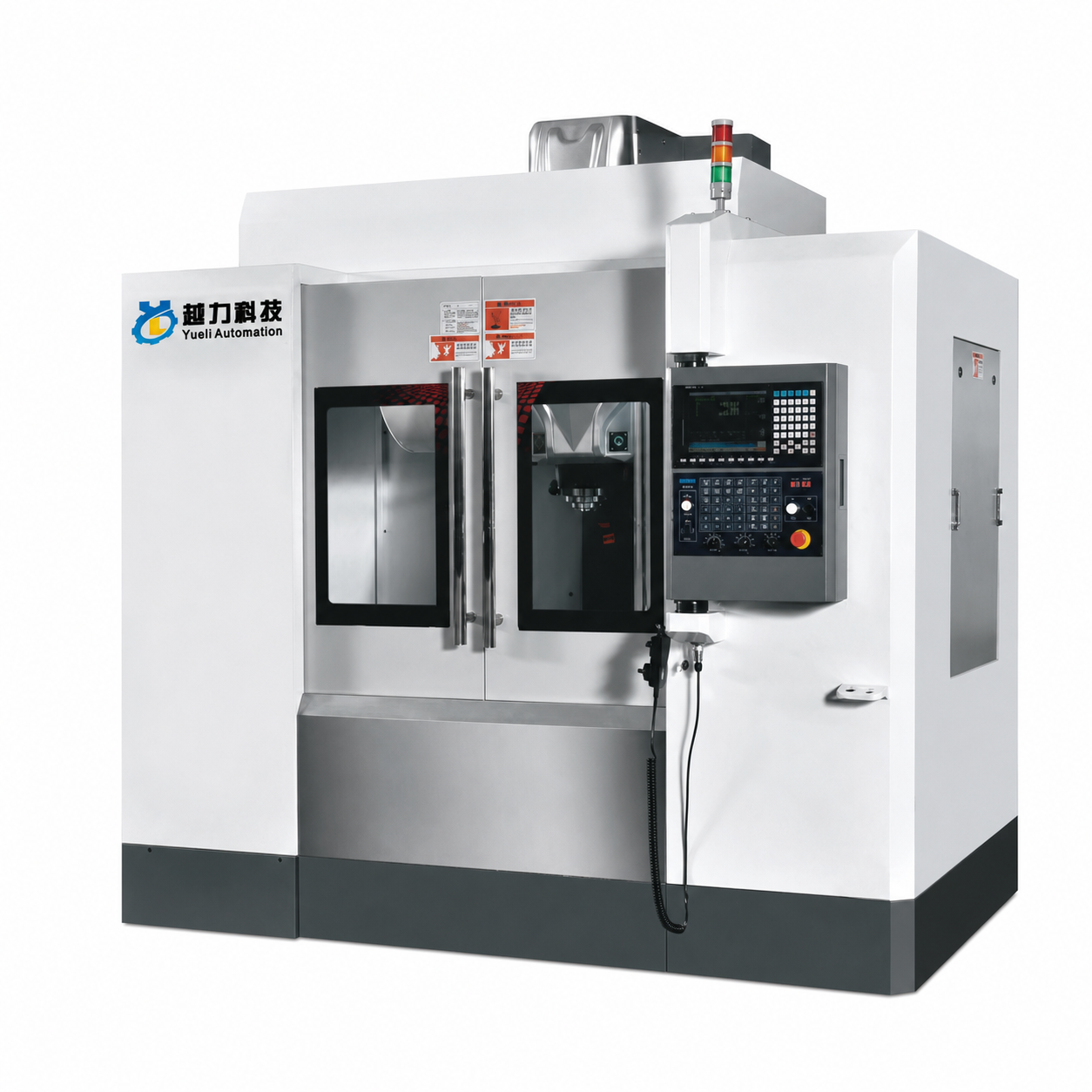

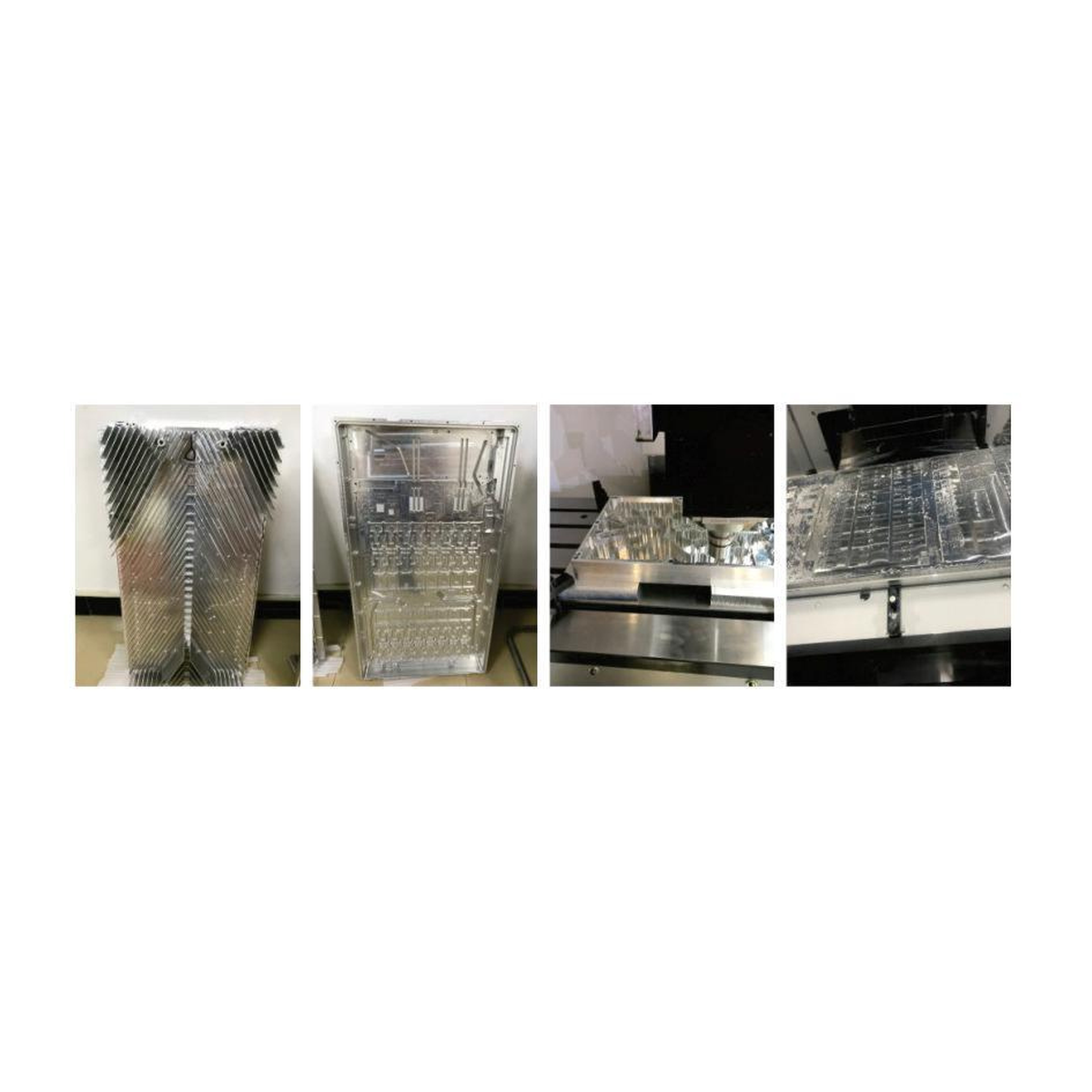

High-speed machining center for 5G communication cavities, automotive parts, moulds and high-end automated manufacturing. Models V850/V1165/V1370/V1380; BT40 direct spindle; 12,000 rpm (V1380 up to 10,000/12,000); 16.5-18.5 kW; 24T servo tool magazine; 5000-8000 kg. Full source specifications and product imagery are reproduced from the Yueli English catalog dated 0326.
CATALOG TECHNICAL DATA
Technical Specifications
Technical data transcribed from the current Yueli product catalog. Final configuration is confirmed against the workpiece, process and production requirements.
V850
| Three axis travel | 800×500×530 mm |
|---|---|
| Workbench size | 1000×500 mm |
| T-slot | 5-18×102 mm |
| Max load bearing capacity of workbench | 800 kg |
| Distance from spindle end face to worktable | 90-640 mm |
| Distance from spindle center to column guide rail | 560 mm |
| Spindle specifications | BT40/Φ140 |
| Spindle max speed | 12000 rpm |
| Spindle power | 16.5 kW |
| X/Y/Z three-axis motor power | 3.9/3.9/5.9 kW |
| X/Y/Z max speed | 48 m/min |
| X/Y/Z cutting maximum speed | 10000 mm/min |
| Dimension L×W×H | 2500×2400×2400 mm |
| Net weight | 5000 kg |
V1165
| Three axis travel | 1100×650×650 mm |
|---|---|
| Workbench size | 1200×650 mm |
| T-slot | 5-18×100 mm |
| Max load bearing capacity of workbench | 1000 kg |
| Distance from spindle end face to worktable | 100-750 mm |
| Distance from spindle center to column guide rail | 680 mm |
| Spindle specifications | BT40/Φ150 |
| Spindle max speed | 12000 rpm |
| Spindle power | 16.5 kW |
| X/Y/Z three-axis motor power | 3.9/3.9/5.9 kW |
| X/Y/Z max speed | 48 m/min |
| X/Y/Z cutting maximum speed | 10000 mm/min |
| Dimension L×W×H | 3050×2700×2700 mm |
| Net weight | 6000 kg |
V1370
| Three axis travel | 1300×700×700 mm |
|---|---|
| Workbench size | 1400×700 mm |
| T-slot | 5-18×115 mm |
| Max load bearing capacity of workbench | 1200 kg |
| Distance from spindle end face to worktable | 150-850 mm |
| Distance from spindle center to column guide rail | 730 mm |
| Spindle specifications | BT40/Φ150 |
| Spindle max speed | 12000 rpm |
| Spindle power | 16.5 kW |
| X/Y/Z three-axis motor power | 3.9/3.9/5.9 kW |
| X/Y/Z max speed | 48 m/min |
| X/Y/Z cutting maximum speed | 10000 mm/min |
| Dimension L×W×H | 3450×2800×3100 mm |
| Net weight | 7000 kg |
V1380
| Three axis travel | 1300×800×800 mm |
|---|---|
| Workbench size | 1500×800 mm |
| T-slot | 5-18×120 mm |
| Max load bearing capacity of workbench | 1200 kg |
| Distance from spindle end face to worktable | 125-925 mm |
| Distance from spindle center to column guide rail | 835 mm |
| Spindle specifications | BT40/BT50/Φ150 |
| Spindle max speed | 10000/12000 rpm |
| Spindle power | 18.5 kW |
| X/Y/Z three-axis motor power | 3.9/3.9/5.9 kW |
| X/Y/Z max speed | 48 m/min |
| X/Y/Z cutting maximum speed | 10000 mm/min |
| Dimension L×W×H | 3650×3000×3250 mm |
| Net weight | 8000 kg |
Please share the workpiece drawing, material, key dimensions, required process and target output for configuration review.
