Description

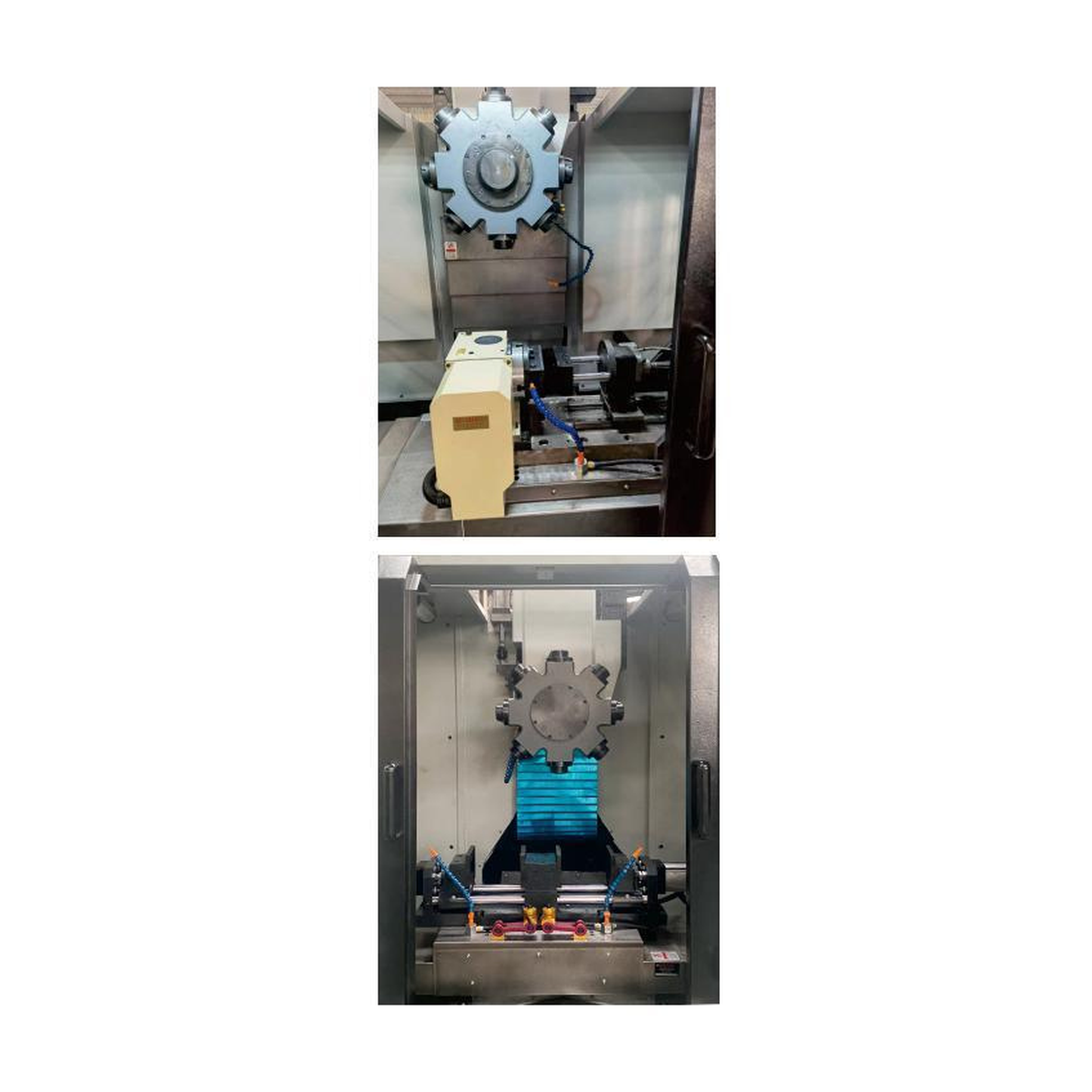

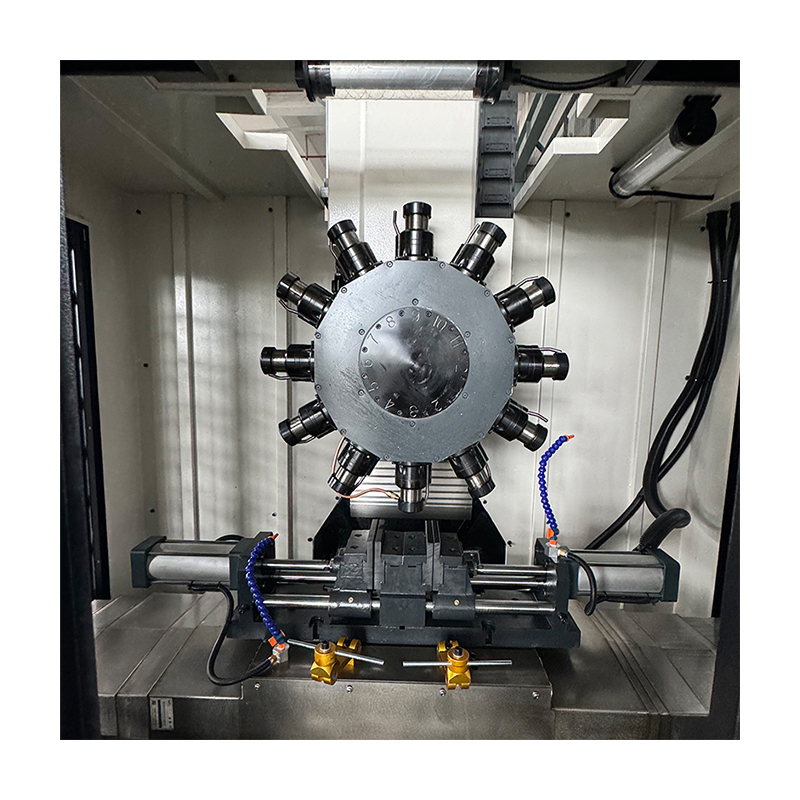

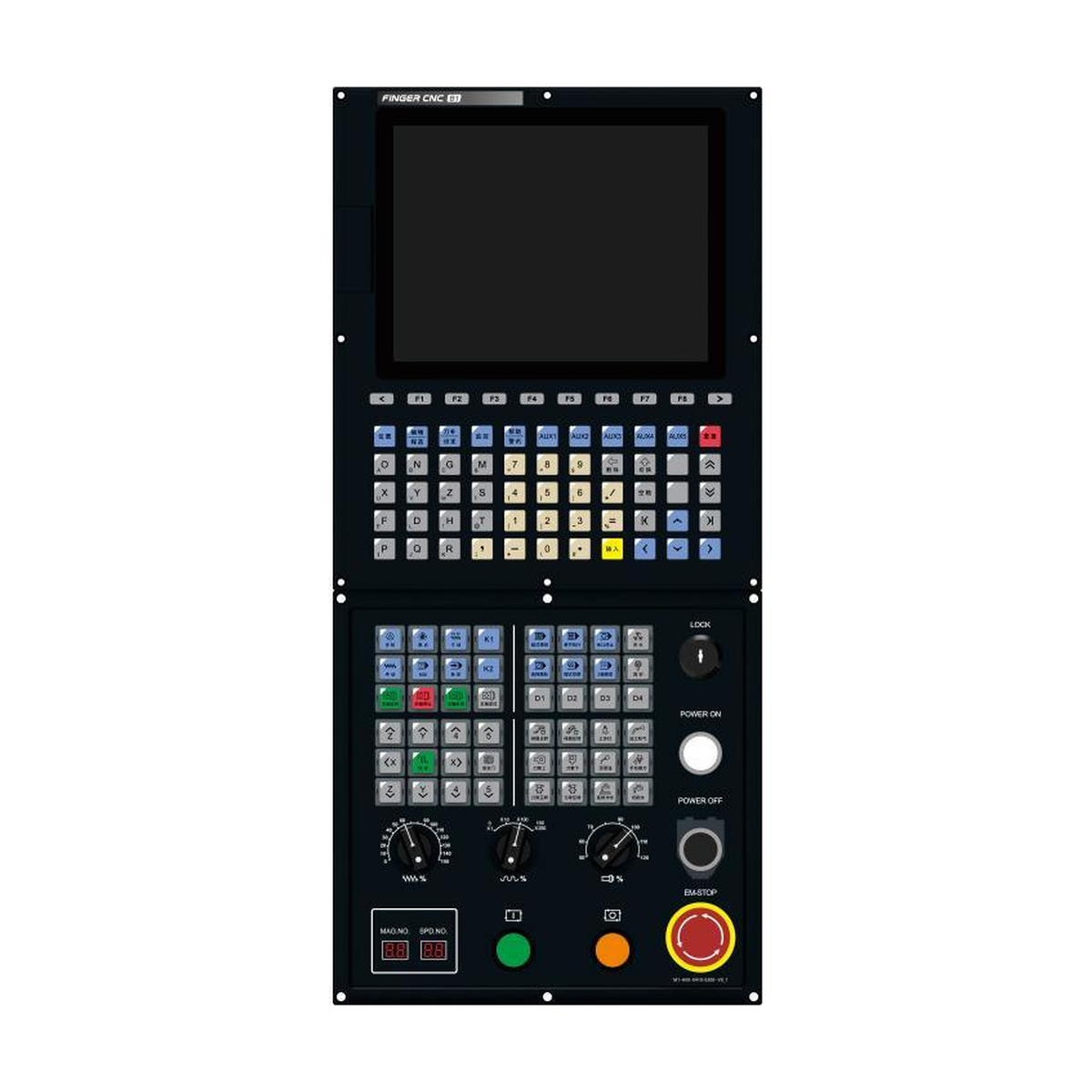

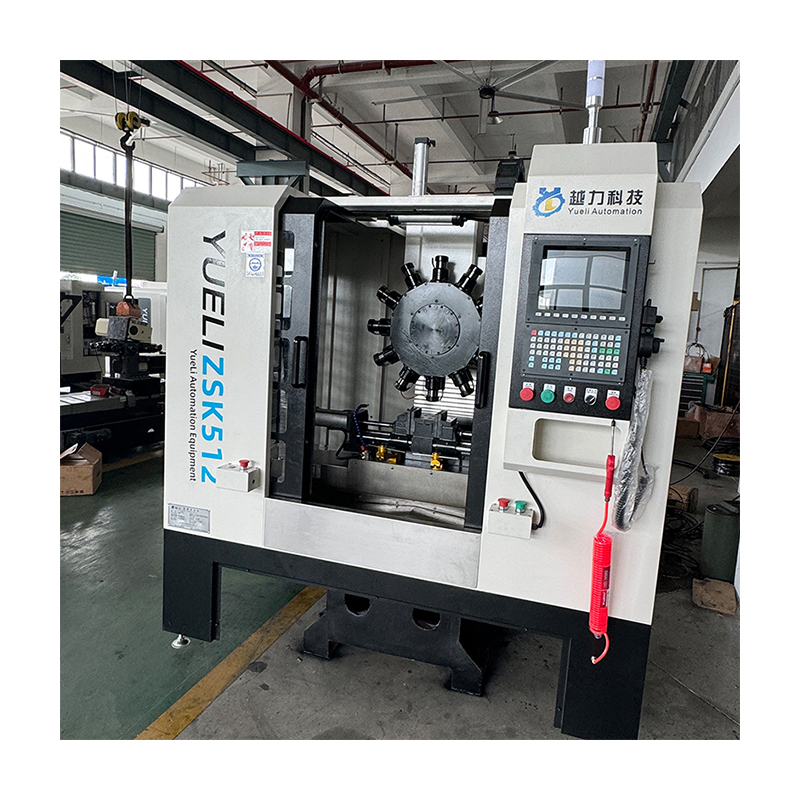

Vertical turret machining center with optional Taiwan Hust CNC and synchronous turret tool change. 8/12 spindles; X/Y/Z travel 700/500/340 mm; 5.5 kW; 0-6000 rpm; 60 mm max hole diameter; 0.8 s/180° tool change; 600 x 420 mm work surface; 2100 x 2100 x 1900 mm; 3500 kg. Full source specifications and product imagery are reproduced from the Yueli English catalog dated 0326.
CATALOG TECHNICAL DATA
Technical Specifications
Technical data transcribed from the current Yueli product catalog. Final configuration is confirmed against the workpiece, process and production requirements.
ZSK512
| Spindle qty | 8/12 |
|---|---|
| X-axis maximum travel (screw) | 700 mm |
| Y-axis maximum travel | 500 mm |
| Z-axis maximum travel | 340 mm |
| Servo spindle motor power | 5.5 kW |
| Spindle revolutions | 0-6000 rpm |
| Max processing hole diameter | Φ60 mm |
| Spindle turret tool changing time | 0.8 s / 180° |
| Tool change servo motor | 750 W |
| Work surface size | 600×420 mm |
| Dimension L×W×H | 2100×2100×1900 mm |
| Net weight | 3500 kg |
Please share the workpiece drawing, material, key dimensions, required process and target output for configuration review.
