Description

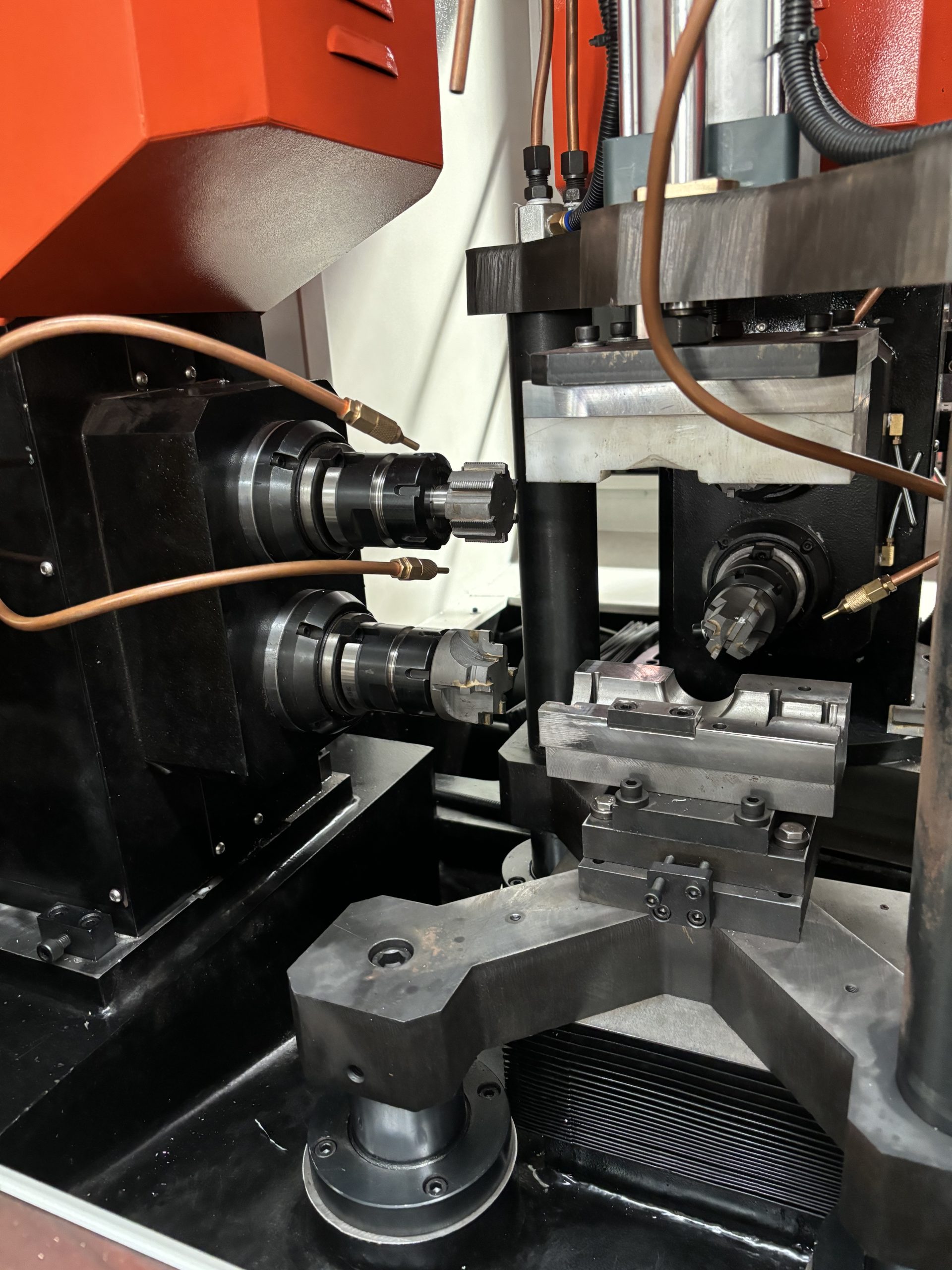

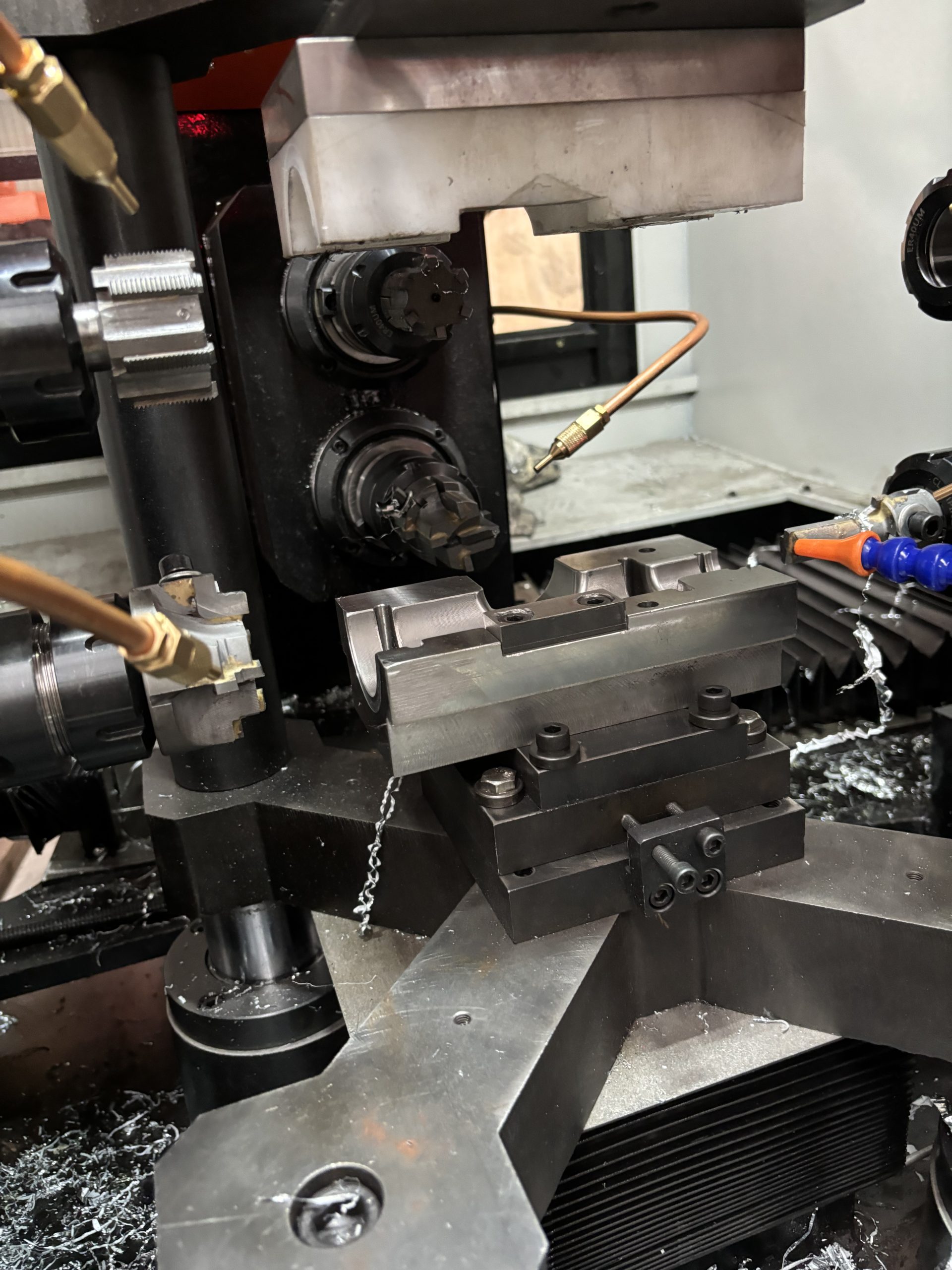

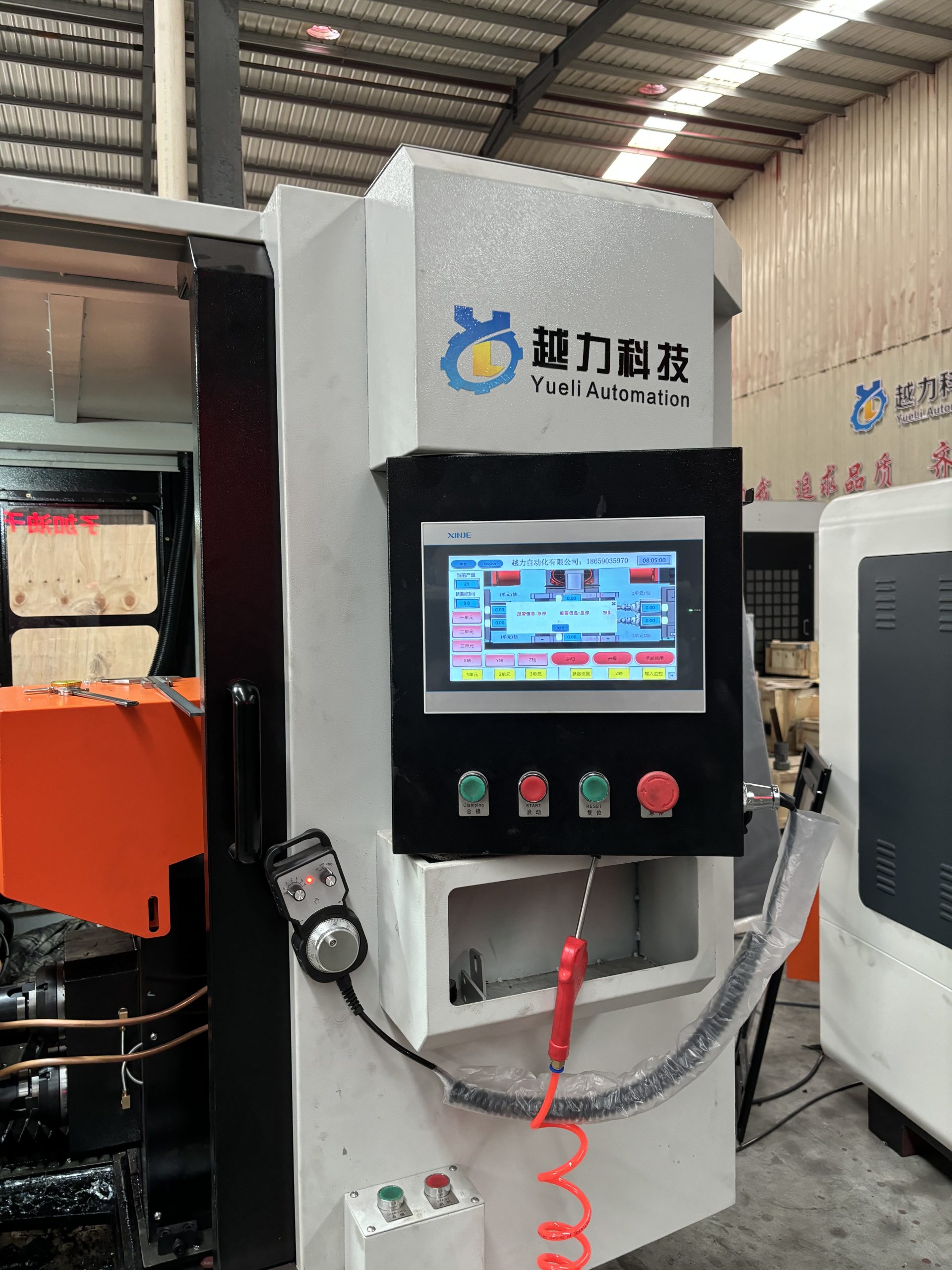

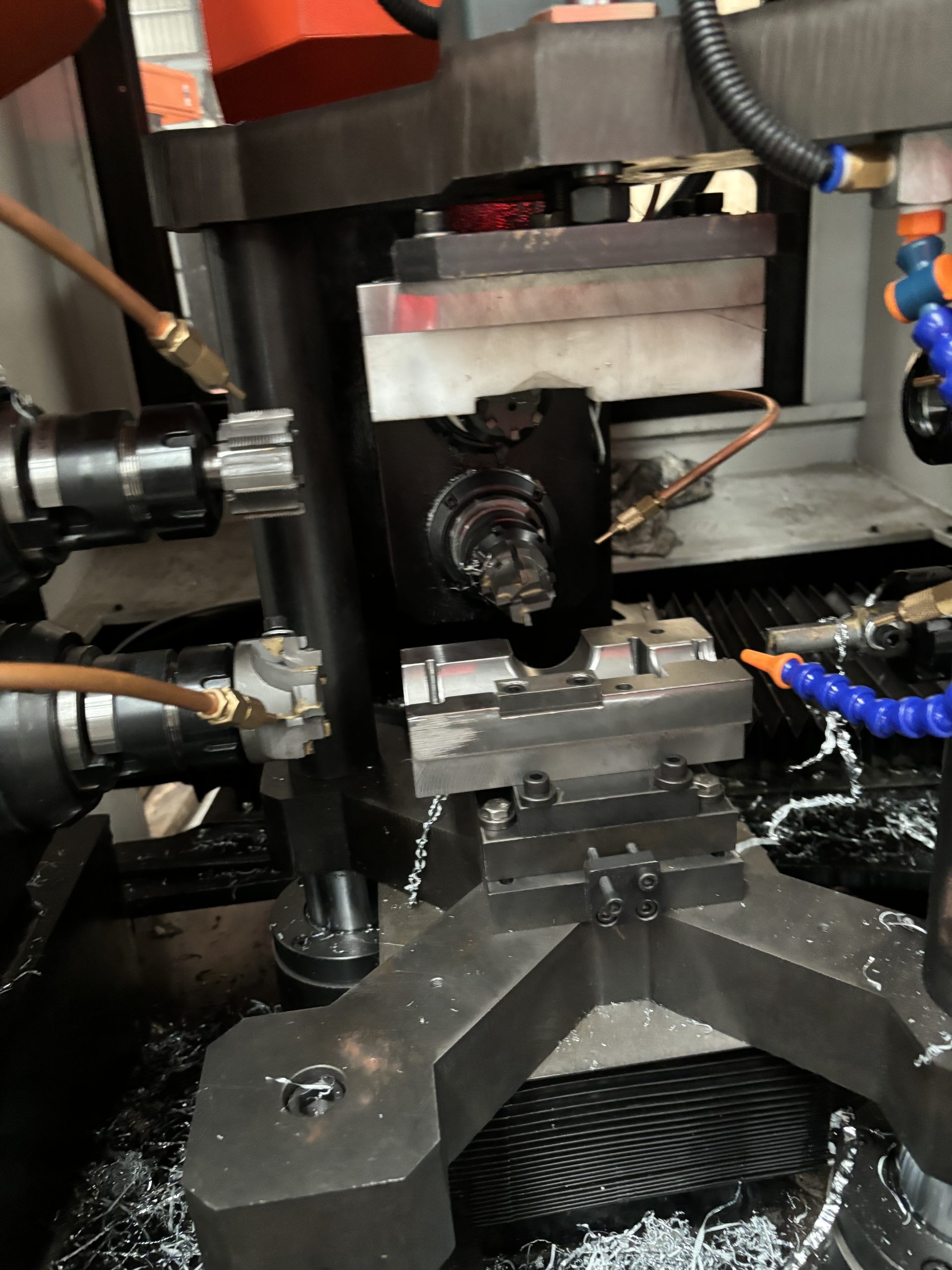

The ZSK4950X6 is a full-servo six-axis machining center with an optional Taiwan Yitu CNC system or PLC and simultaneous machining in three directions. 120 mm maximum spindle travel; YL50 spindle unit; NT40 spindle taper; 300 mm rotary spindle unit travel; 15° maximum rotation angle; Φ50 mm maximum drilling diameter; 0-3000 rpm spindle speed.
PRODUCT TECHNICAL DATA
Technical Specifications
Technical data provided for the current ZSK4950X6 configuration. Final configuration is confirmed against the workpiece, process and production requirements.
ZSK4950X6
| Maximum spindle travel | 120 mm |
|---|---|
| Spindle unit | YL50 |
| Spindle taper | NT40 |
| Rotary spindle unit travel | 300 mm |
| Maximum rotary spindle unit angle | 15° |
| Maximum drilling diameter | Φ50 mm |
| Spindle speed | 0-3000 rpm |
Please share the workpiece drawing, material, key dimensions, required process and target output for configuration review.
